High-Precision Cross Cylindrical Roller Slewing Bearing

Cross Cylindrical Roller Slewing Bearing (Without Gear)

Designation	Boundary Dimension			Mounting Hole Size				Structure Size					Basic load ratings	Mass (kg)
	D	d	H	D₁	D₂	n	Φ mm	n₁	D₃	d₁	H₁	h	Coa(10KN)
	mm			mm		n	Φ mm	n₁	mm				Coa(10KN)
110.25.500	602	398	75	566	434	20	18	4	498	502	65	10	104	77
110.25.560	662	458	75	626	494	20	18	4	558	562	65	10	116	87
110.25.630	732	528	75	696	564	24	18	4	628	632	65	10	130	95
110.25.710	812	608	75	776	644	24	18	4	708	712	65	10	149	111
110.28.800	922	678	82	878	722	30	22	6	798	802	72	10	185	167
110.28.900	1022	778	82	978	822	30	22	6	898	902	72	10	209	186
110.28.1000	1122	878	82	1078	922	36	22	6	998	1002	72	10	233	204
110.28.1120	1242	988	82	1198	1042	36	22	6	1118	1122	72	10	262	233
110.32.1250	1390	1110	91	1137	1163	40	26	5	1248	1252	81	10	321	337
110.32.1400	1540	1260	91	1487	1313	40	26	5	1398	1402	81	10	358	369
110.32.1600	1740	1460	91	1678	1513	45	26	5	1598	1602	81	10	412	425
110.32.1800	1940	1660	91	1887	1713	45	26	5	1798	1802	81	10	460	525
110.40.2000	2178	1825	112	2110	1891	48	33	8	1997	2003	100	12	686	815
110.40.2240	2418	2065	112	2350	2131	48	33	8	2237	2243	100	12	764	944
110.40.2500	2678	2325	112	2610	2391	56	33	8	2497	2503	100	12	797	1026
110.40.2800	2978	2625	112	2910	2691	56	33	8	2797	2803	100	12	960	1375
110.50.3150	3376	2922	134	3286	3014	56	45	8	3147	3153	122	12	1380	2097
110.50.3550	3776	3322	134	3686	3414	56	45	8	3547	3553	122	12	1570	2470
110.50.4000	4226	3772	134	4136	3864	60	45	10	3997	4003	122	12	1760	2800
110.50.4500	4726	4272	134	4636	4364	60	45	10	4497	4503	122	12	1980	3100

Cross Cylindrical Roller Slewing Bearing (Internal Gear)

Designation	Boundary Dimension			Mounting Hole Size				Structure Size					Gear Data					Tangential Tooth Load		Basic load ratings	Mass (kg)
	D	d	H	D₁	D₂	n	Φ mm	n₁	D₃	d₁	H₁	h	B mm	x	m	De	z	Z 10⁴N	T 10⁴N	Coa(10KN)
	mm					n	Φ mm	n₁	mm			h	B mm	x	mm		z	Z 10⁴N	T 10⁴N	Coa(10KN)
113.25.500	602	398	75	566	434	20	18	4	498	502	65	10	60	+0.5	5	367	74	3.7	5.2	104	85
114.25.500	602	398	75	566	434	20	18	4	498	502	65	10	60	+0.5	6	368.4	62	4.5	6.2	104	85
113.25.560	662	458	75	626	494	20	18	4	558	562	65	10	60	+0.5	5	427	86	3.7	5.2	116	96
114.25.560	662	458	75	626	494	20	18	4	558	562	65	10	60	+0.5	6	428.4	72	4.5	6.2	116	96
113.25.630	732	528	75	696	564	24	18	4	628	632	65	10	60	+0.5	6	494.4	83	4.5	6.2	130	110
114.25.630	732	528	75	696	564	24	18	4	628	632	65	10	60	+0.5	8	491.2	62	6.0	8.3	130	110
113.25.710	812	608	75	776	644	24	18	4	708	712	65	10	60	+0.5	6	572.4	96	4.5	6.2	149	126
114.25.710	812	608	75	776	644	24	18	4	708	712	65	10	60	+0.5	8	571.2	72	6.0	8.3	149	122
113.28.800	922	678	82	878	722	30	22	6	798	802	72	10	65	+0.5	8	635.2	80	6.5	9.1	185	186
114.28.800	922	678	82	878	722	30	22	6	798	802	72	10	65	+0.5	10	634	64	8.1	11.4	185	186
113.28.900	1022	778	82	978	822	30	22	6	898	902	72	10	65	+0.5	8	739.2	93	6.5	9.1	209	208
114.28.900	1022	778	82	978	822	30	22	6	898	902	72	10	65	+0.5	10	734	74	8.1	11.4	209	208
113.28.1000	1122	878	82	1078	922	36	22	6	998	1002	72	10	65	+0.5	10	824	83	8.1	11.4	233	220
114.28.1000	1122	878	82	1078	922	36	22	6	998	1002	72	10	65	+0.5	12	820.8	69	9.7	13.6	233	220
113.28.1120	1242	988	82	1198	1042	36	22	6	1118	1122	72	10	65	+0.5	10	944	95	8.1	11.4	262	273
114.28.1120	1242	988	82	1198	1042	36	22	6	1118	1122	72	10	65	+0.5	12	940.8	79	9.7	13.6	262	273
113.32.1250	1390	1110	91	1337	1163	40	26	5	1248	1252	81	10	75	+0.5	12	1048.8	88	11.3	15.7	321	386
114.32.1250	1390	1110	91	1337	1163	40	26	5	1248	1252	81	10	75	+0.5	14	1041.6	75	13.2	18.2	321	390
113.32.1400	1540	1260	91	1487	1313	40	26	5	1398	1402	81	10	75	+0.5	12	1192.8	100	11.3	15.7	358	441
114.32.1400	1540	1260	91	1487	1313	40	26	5	1398	1402	81	10	75	+0.5	14	1195.6	86	13.2	18.2	358	441
113.32.1600	1740	1460	91	1678	1513	45	26	5	1598	1602	81	10	75	+0.5	14	1391.6	100	13.2	18.2	412	502
114.32.1600	1740	1460	91	1678	1513	45	26	5	1598	1602	81	10	75	+0.5	16	1382.4	87	15.1	22.4	412	517
113.32.1800	1940	1660	91	1887	1713	45	26	5	1798	1802	81	10	75	+0.5	14	1573.6	113	13.2	18.2	460	605
114.32.1800	1940	1660	91	1887	1713	45	26	5	1798	1802	81	10	75	+0.5	16	1574.4	99	15.1	22.4	460	605
113.40.2000	2178	1825	112	2110	1891	48	33	8	1997	2003	100	12	90	+0.5	16	1734.4	109	18.1	25.0	686	977
114.40.2000	2178	1825	112	2110	1891	48	33	8	1997	2003	100	12	90	+0.5	18	1735.2	97	20.3	28.1	686	977
113.40.2240	2418	2065	112	2350	2131	48	33	8	2237	2243	100	12	90	+0.5	16	1990.4	125	18.1	25.0	764	1072
114.40.2240	2418	2065	112	2350	2131	48	33	8	2237	2243	100	12	90	+0.5	18	1987.2	111	20.3	28.1	764	1072
113.40.2500	2678	2325	112	2610	2391	56	33	8	2497	2503	100	12	90	+0.5	18	2239.2	125	20.3	28.1	797	1211
114.40.2500	2678	2325	112	2610	2391	56	33	8	2497	2503	100	12	90	+0.5	20	2228	112	22.6	31.3	797	1211
113.40.2800	2978	2625	112	2910	2691	56	33	8	2797	2803	100	12	90	+0.5	18	2527.2	141	20.3	28.1	960	1396
114.40.2800	2978	2625	112	2910	2691	56	33	8	2797	2803	100	12	90	+0.5	20	2528	127	22.6	31.3	960	1396
113.50.3150	3376	2922	134	3286	3014	56	45	8	3147	3153	122	12	110	+0.5	20	2828	142	27.6	38.3	1380	2344
114.50.3150	3376	2922	134	3286	3014	56	45	8	3147	3153	122	12	110	+0.5	22	2824.8	129	30.4	42.1	1380	2344
113.50.3550	3776	3322	134	3686	3414	56	45	8	3547	3553	122	12	110	+0.5	20	3228	162	27.6	38.3	1570	2470
114.50.3550	3776	3322	134	3686	3414	56	45	8	3547	3553	122	12	110	+0.5	22	3220.8	147	30.4	42.1	1570	2470
113.50.4000	4226	3772	134	4136	3864	60	45	10	3997	4003	122	12	110	+0.5	22	3660.8	167	30.4	42.1	1760	2800
114.50.4000	4226	3772	134	4136	3864	60	45	10	3997	4003	122	12	110	+0.5	25	3660	147	34.5	47.8	1760	2800
113.50.4500	4726	4272	134	4636	4364	60	45	10	4497	4503	122	12	110	+0.5	22	4166.8	190	30.4	42.1	1980	3100
114.50.4500	4726	4272	134	4636	4364	60	45	10	4497	4503	122	12	110	+0.5	25	4160	167	34.5	47.8	1980	3100

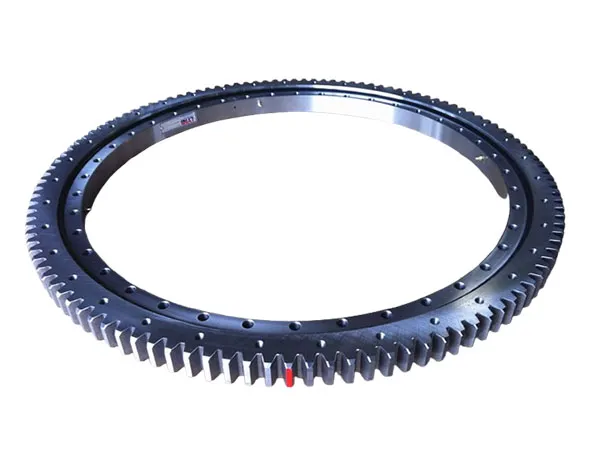

Cross Cylindrical Roller Slewing Bearing (External Gear)

Designation	Boundary Dimension			Mounting Hole Size						Structure Size			Gear Data					Tangential Tooth Load		Basic load ratings	Mass (kg)
	D	d	H	D₁	D₂	n	Φ mm	n₁	D₃ mm	d₁	H₁	h	B mm	x	m mm	z	De mm	Z 10⁴N	T 10⁴N	Coa(10KN)
	mm			mm		n	Φ mm	n₁	D₃ mm	mm			B mm	x	m mm	z	De mm	Z 10⁴N	T 10⁴N	Coa(10KN)
111.25.500	602	398	75	566	434	20	18	4	498	502	65	10	60	+0.5	5	123	629	3.7	5.2	104	84
112.25.500	602	398	75	566	434	20	18	4	498	502	65	10	60	+0.5	6	102	628.8	4.5	6.2	104	84
111.25.560	662	458	75	626	494	20	18	4	558	562	65	10	60	+0.5	5	135	689	3.7	5.2	116	92
112.25.560	662	458	75	626	494	20	18	4	558	562	65	10	60	+0.5	6	112	688.8	4.5	6.2	116	92
111.25.630	732	528	75	696	564	24	18	4	628	632	65	10	60	+0.5	6	126	772.8	4.5	6.2	130	111
112.25.630	732	528	75	696	564	24	18	4	628	632	65	10	60	+0.5	8	94	774.4	6	8.3	130	111
111.25.710	812	608	75	776	644	24	18	4	708	712	65	10	60	+0.5	6	139	850.8	4.5	6.2	149	125
112.25.710	812	608	75	776	644	24	18	4	708	712	65	10	60	+0.5	8	104	854.4	6	8.3	149	125
111.28.800	922	678	82	878	722	30	22	6	798	802	72	10	65	+0.5	8	118	966.4	6.5	9.1	185	179
112.28.800	922	678	82	878	722	30	22	6	798	802	72	10	65	+0.5	10	94	968	8.1	11.4	185	179
111.28.900	1022	778	82	978	822	30	22	6	898	902	72	10	65	+0.5	8	130	1062.4	6.5	9.1	209	200
112.28.900	1022	778	82	978	822	30	22	6	898	902	72	10	65	+0.5	10	104	1068	8.1	11.4	209	200
111.28.1000	1122	878	82	1078	922	36	22	6	998	1002	72	10	65	+0.5	10	116	1188	8.1	11.4	233	242
112.28.1000	1122	878	82	1078	922	36	22	6	998	1002	72	10	65	+0.5	12	96	1185.6	9.7	13.6	233	242
111.28.1120	1242	988	82	1198	1042	36	22	6	1118	1122	72	10	65	+0.5	10	127	1298	8.1	11.4	262	261
112.28.1120	1242	988	82	1198	1042	36	22	6	1118	1122	72	10	65	+0.5	12	106	1305.6	9.7	13.6	262	261
111.32.1250	1390	1110	91	1137	1163	40	26	5	1248	1252	81	10	75	+0.5	12	118	1449.6	11.3	15.7	321	362
112.32.1250	1390	1110	91	1137	1163	40	26	5	1248	1252	81	10	75	+0.5	1390	101	1453.2	13.2	18.2	321	362
111.32.1400	1540	1260	91	1487	1313	40	26	5	1398	1402	81	10	75	+0.5	12	131	1605.6	11.3	15.7	358	417
112.32.1400	1540	1260	91	1487	1313	40	26	5	1398	1402	81	10	75	+0.5	14	112	1607.2	13.2	18.2	358	411
111.32.1600	1740	1460	91	1678	1513	45	26	5	1598	1602	81	10	75	+0.5	14	127	1817.2	13.2	18.2	412	488
112.32.1600	1740	1460	91	1678	1513	45	26	5	1598	1602	81	10	75	+0.5	16	111	1820.8	15.1	22.4	412	484
111.32.1800	1940	1660	91	1887	1713	45	26	5	1798	1802	81	10	75	+0.5	14	141	2013.2	13.2	18.2	460	530
112.32.1800	1940	1660	91	1887	1713	45	26	5	1798	1802	81	10	75	+0.5	16	123	2012.8	15.1	22.4	460	530
111.40.2000	2178	1825	112	2110	1891	48	33	8	1997	2003	100	12	90	+0.5	16	139	2268.8	18.1	25	686	935
112.40.2000	2178	1825	112	2110	1891	48	33	8	1997	2003	100	12	90	+0.5	18	123	2264.4	20.3	28.1	686	935
111.40.2240	2418	2065	112	2350	2131	48	33	8	2237	2243	100	12	90	+0.5	16	153	2492.8	18.1	25	764	1008
112.40.2240	2418	2065	112	2350	2131	48	33	8	2237	2243	100	12	90	+0.5	18	136	2498.4	20.3	28.1	764	1008
111.40.2500	2678	2325	112	2610	2391	56	33	8	2497	2503	100	12	90	+0.5	18	151	2768.4	20.3	28.1	797	1147
112.40.2500	2678	2325	112	2610	2391	56	33	8	2497	2503	100	12	90	+0.5	20	136	2776	22.6	31.3	797	1147
111.40.2800	2978	2625	112	2910	2691	56	33	8	2797	2803	100	12	90	+0.5	18	168	3074.4	20.3	28.1	960	1320
112.40.2800	2978	2625	112	2910	2691	56	33	8	2797	2803	100	12	90	+0.5	20	151	3076	22.6	31.3	960	1320
111.50.3150	3376	2922	134	3286	3014	56	45	8	3147	3153	122	12	110	+0.5	20	171	3476	27.6	38.3	1380	2222
112.50.3150	3376	2922	134	3286	3014	56	45	8	3147	3153	122	12	110	+0.5	22	155	3471.6	30.4	42.1	1380	2222
111.50.3550	3776	3322	134	3686	3414	56	45	8	3547	3553	122	12	110	+0.5	20	191	3876	27.6	38.3	1570	2470
112.50.3550	3776	3322	134	3686	3414	56	45	8	3547	3553	122	12	110	+0.5	22	174	3889.6	30.4	42.1	1570	2470
111.50.4000	4226	3772	134	4136	3864	60	45	10	3997	4003	122	12	110	+0.5	22	194	4329.6	30.4	42.1	1760	2800
112.50.4000	4226	3772	134	4136	3864	60	45	10	3997	4003	122	12	110	+0.5	25	171	4345	34.5	47.8	1760	2800
111.50.4500	4726	4272	134	4636	4364	60	45	10	4497	4503	122	12	110	+0.5	22	217	4835.6	30.4	42.1	1980	3100
112.50.4500	4726	4272	134	4636	4364	60	45	10	4497	4503	122	12	110	+0.5	25	191	4845	34.5	47.8	1980	3100

LYNBCC cross cylindrical roller slewing bearing can carry axial load, tilting moment and radial load all at the same time. The design and application of the cross cylindrical roller slewing bearings are basically the same as those of the four point contact ball slewing bearing, except that the rolling elements are substituted from balls into rollers and the contact way between the rolling elements and rings is changed from point contact into line contact. Those changes allow for the carrying capacity to be increased, but the wear and the friction moment load are also increased.

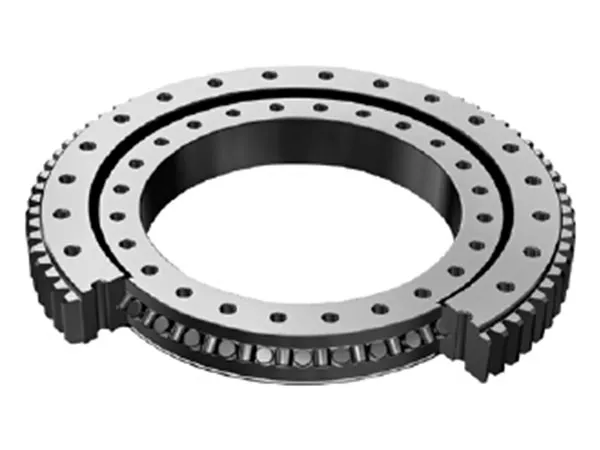

LYNBCC cross cylindrical roller slewing bearings are composed of a inner ring, outer ring, a single row of rollers, cages(spacer), and seal device etc.

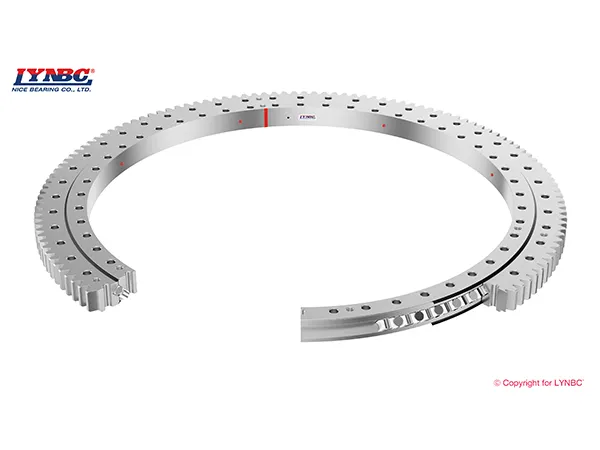

In this design, their cylindrical rollers in axial direction is cross-distribution. The length-diameter ratio of cylindrical roller is less than1, It would cause slight movement when rollers running.

LYNBCC cross cylindrical roller slewing bearing can carry different combined forces caused by axial load, tilting moment and radial load in different working condition. By adjusting the quantity of crossed rollers and contact angle.

There are integral and separate rings in the structure of LYNBC cross cylindrical roller slewing bearing. Cages or spacers are usually adopted within design in order to ease friction. Rollers and raceway contact.

This slewing bearing with a design of a full complement of rollers is mainly applied in the condition where a heavier axial load is the primary load, and the requirement for tilting moment and friction moment is not so high.

The basic structure of LYNBC cross cylindrical roller slewing bearing as below:

Without gear

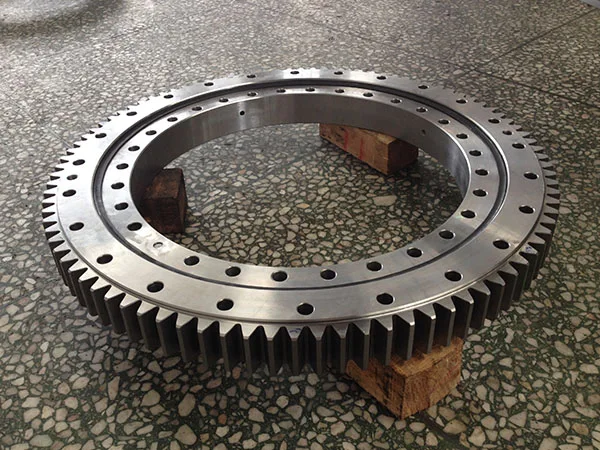

External gear

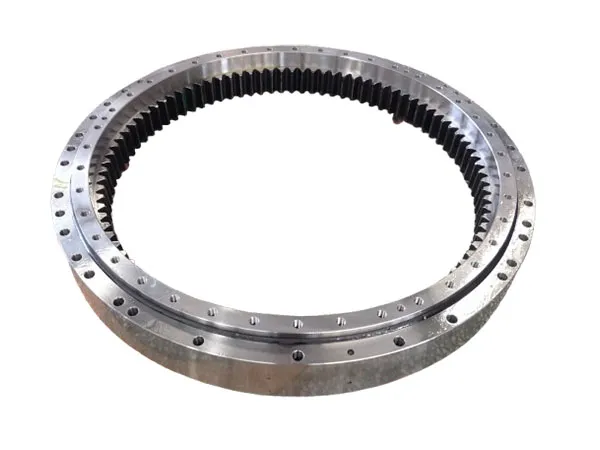

Internal gear

▲ The design’s of all these slewing bearing are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC Technical Center if you need any assistance in this area.

Selection Criteria

Choosing the right cross roller slewing bearing for a specific application involves several factors:

Load Requirements

Axial Load (Fa): The maximum axial load the bearing will experience.

Radial Load (Fr): The maximum radial load the bearing will experience.

Moment Load (M): The maximum moment load the bearing will experience. This is often the most critical factor.

Consider static loads (non-rotating) and dynamic loads (during rotation).

Factor in any impact loads or shock loads.

Rotational Speed: The maximum rotational speed of the bearing.

Accuracy Requirements: The required level of rotational accuracy. This will influence the choice of preload and manufacturing tolerances.

Operating Environment

Temperature: The operating temperature range.

Contamination: The presence of dust, dirt, or other contaminants.

Corrosion: The potential for corrosion.

Vibration: The level of vibration.

Mounting Conditions

The stiffness of the supporting structure.

The accuracy of the mounting surfaces.

The method of mounting (e.g., bolted connections).

Bearing Size and Weight: Physical space constraints and weight limitations.

Lifespan Requirements: The desired lifespan of the bearing.

Lubrication: The type of lubricant to be used and the lubrication frequency. Consider grease lubrication or oil lubrication, and whether automatic lubrication systems are needed.

Sealing: The type of sealing required to protect the bearing from contamination.

Preload: The amount of preload required for the application. Higher preload increases stiffness and accuracy but also increases friction.

Material: Selecting the appropriate material based on load, environment, and cost considerations.

Special Features: Consider any special features that may be required, such as integrated gears, sensors, or encoders.
