XSU 14-Sealed on Both Side

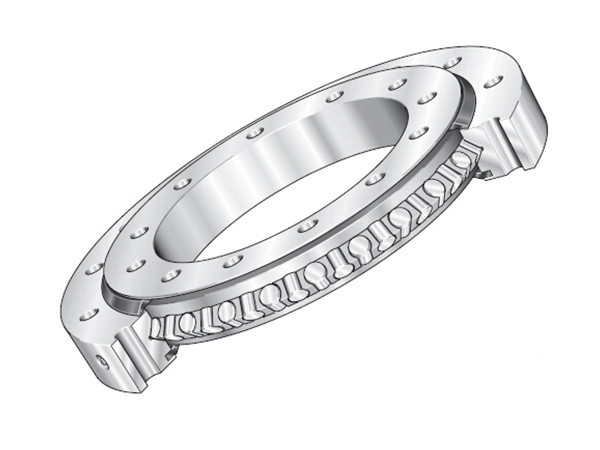

Crossed roller bearings XSU 14 are preloaded and screw mounted by means of the bearing rings directly on the adjacent construction. It also have been available with internal or external gear teeth.Series XSU 14 crossed roller bearings from LYNBC have conducted cylindrical rollers to DIN 5402, spacers made from plastic and centered on the inside and outside diameter, sealed on both sides, and for operating temperatures from -30℃ to +80℃.

▲ The design’s of all these crossed roller bearings XSU series are based on standard structures; LYNBC can design and manufacture many other similar structures in accordance to the special and particular requirements of their customers’. If our customer’s have specific requests then the customer should identify the structure, and mounting dimensions that are required. Please contact the LYNBC technical center if you need any assistance in this area.

High Precision XSU 14 Series Crossed Roller Bearings Introduction

The high precision xsu 14 series crossed roller bearings are specialized bearing components designed for applications requiring high accuracy, load capacity, and minimal friction. These bearings are particularly useful in precision machinery, robotic systems, medical devices, and industrial equipment where precise rotational movement and durability are essential.

Key Features of XSU 14 Series Crossed Roller Bearings

Crossed Roller Design: These bearings are designed with cylindrical rollers arranged at a 90-degree angle to each other, which helps support radial, axial, and moment loads simultaneously. This design improves rigidity and load distribution, making them ideal for high-precision applications.

High Load Capacity: The XSU 14 Series can handle both radial and axial loads effectively, offering better performance than traditional bearings that support only one type of load. This makes them suitable for heavy-duty applications where both types of forces are present.

Compact Size: The bearings in the XSU 14 series are designed to be compact, making them suitable for space-constrained environments while still providing excellent load-bearing capabilities.

High Precision and Accuracy: These bearings provide very low run-out and high precision, which is crucial for applications where rotational accuracy is important. They help maintain the alignment and smooth operation of precision equipment.

Low Friction: The design of the crossed roller bearing reduces friction and wear, extending the lifespan of the bearing and improving the overall efficiency of the system.

Customization Options: The XSU 14 Series is available in various configurations to meet the specific needs of different applications. These bearings are often customizable to suit a wide range of mechanical requirements.

Applications

Robotics: Precision rotation in robotic joints and actuators.

Medical Equipment: Components that require highly accurate movement, such as in medical imaging or surgical equipment.

Semiconductor Equipment: Used in machines that demand precise rotational motion.

Aerospace: In applications where high precision and durability are critical.
